In this video I will show you a great motherboard from ASUS that uses SLI and it is packed with great features at an awesome price. Below I also posted information where to buy this board and technical specs.

One more thing I wanted to mention that I did not in video is that this motherboard is great for overclocking and very easy to do it with software included in the ASUS CD.



 iphone_small

Iphone, Itouch Format available: MPEG4 Video (.mp4)





In the video I mention that I bought this board from NewEgg.com at $134.00, unfortunately when I searched for the same link on newegg.com the price has gone up slightly. It is now at $149.99 and open box you can get it for $104.99. Take a look at and email me if you find it at a better price somewhere else so I can post it for others here.

Motherboard Pricing Link:

New from NewEgg.com: http://www.newegg.com/Product/Product.aspx?Item=N82E16813131232

Open Box from NewEgg.com: http://www.newegg.com/Product/Product.aspx?Item=N82E16813131232R

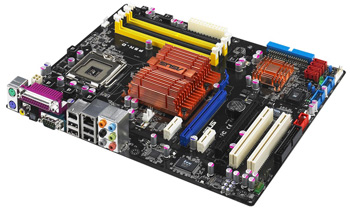

Technical Specs for  the ASUS P5N-D

CPU

Intel Socket 775 Core™2 Quad/Core™2 Extreme/Core™2 Duo/Pentium® Extreme/Pentium® D/Pentium® 4 Processors
Compatible with Intel® 05B/05A/06 processors
Support Intel® next generation 45nm CPU

——————————————————————————————————————

Chipset

NVIDIA nForce 750i SLI

——————————————————————————————————————

Front Side Bus

1333/1066/800 MHz

——————————————————————————————————————

Memory

4 x DIMM, Max. 8 GB, DDR2 800/667/533 Non-ECC,Un-buffered Memory
Dual Channel memory architecture
* Refer to www.asus.com or user manual for Memory QVL (Qualify Vendor List)

——————————————————————————————————————

Expansion Slots

2 x PCIe 2.0 x16
– Single VGA mode: x16
– SLI mode: Hardware ready for x16, x16
2 x PCIe x1
2 x PCI 2.2

Scalable Link Interface (SLIâ„¢)

Support two identical NVIDIA SLI-Ready graphics cards (Hardware ready for x16, x16)

——————————————————————————————————————

Storage

Southbridge
1 xUltraDMA 133/100/66/33
4 xSATA 3 Gb/s ports NVIDIA MediaShieldâ„¢ RAID: Support RAID 0,1,0+1,5,JBOD span cross Serial ATA drives

——————————————————————————————————————

LAN

NVIDIA nForce® 750i SLI built-in Gigabit MAC with external PHY

——————————————————————————————————————

Audio

Realtek ALC883 8 -Channel High Definition Audio CODEC
Coaxial / Optical S/PDIF out ports
Support Jack-Sensing, Enumeration, Multi-streaming

——————————————————————————————————————

IEEE 1394

VIA6308P controller supports 2 x 1394a ports (one at mid-board; one at back panel)

——————————————————————————————————————

USB

8 USB 2.0 ports (4 ports at mid-board, 4 ports at back panel)

——————————————————————————————————————

ASUS AI Lifestyle Features

ASUS Power Saving Solution
– ASUS EPU (Energy Processing Unit)
– ASUS AI Nap
– ASUS AI Gear 3 (ASUS EPU Utility)
ASUS Quiet Thermal Solution
– ASUS Q-Fan 2
– ASUS Optional Fan for Water-cooling or Passive-Cooling only
– ASUS Fanless Design: Heatsink solution
ASUS EZ DIY
– ASUS Q-Connector
– ASUS Q-Shield
– ASUS AI Direct Link
– ASUS O.C. Profile
– ASUS CrashFree BIOS 2
– ASUS EZ Flash 2

——————————————————————————————————————

Overclocking Features

Intelligent overclocking tools
– AI Overclocking (intelligent CPU frequency tuner)
Precision Tweaker 2
– vDIMM: 64 -step DRAM voltage control
– vChipset 29-step Chipset voltage control
– vCore: Adjustable CPU voltage at 0.00625V increment
SFS (Stepless Frequency Selection)
– FSB tuning from 133MHz up to 750MHz at 1MHz increment
– PCI Express frequency tuning from 100MHz up to 130MHz at 1MHz increment
Memory tuning from 400 MHz up to 2600 MHz
Overclocking Protection
– ASUS C.P.R.(CPU Parameter Recall)

——————————————————————————————————————

Special Features

Multi-language BIOS
ASUS MyLogo 2

——————————————————————————————————————

Back Panel I/O Ports

1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x IEEE 1394a
1 x LAN(RJ45) port
4 x USB 2.0/1.1
8 -Channel Audio I/O
1 x Parallel

——————————————————————————————————————

Internal I/O Connectors

2 x USB connectors support additional 4 USB ports
1 x Floppy disk drive connector
1 x IDE connector
4 x SATA connectors
1 x IEEE 1394a connector
1 x CPU Fan connector
1 x Chassis Fan connector
1 x Power Fan connector
1 x S/PDIF Out connector
1 x 4-pin ATX 12V Power connector
1 x 24 -pin ATX Power connector
Front panel audio connector
Chassis Intrusion connector
CD/AUX audio in
System Panel Connector

——————————————————————————————————————

BIOS

8 Mb Flash ROM
PnP
DMI 2.0
WfM 2.0
SM BIOS 2.4
Award BIOS
ASUS EZ Flash 2
ASUS CrashFree BIOS 2

——————————————————————————————————————

Manageability

WfM 2.0,WOR by Ring,WOL/WOR by PME,DMI 2.0,PXE,AI NET2 WO USB/KB/MS

——————————————————————————————————————

Accessories

SLI connector
SATA cables
IDE cable
FDD cable
ASUS Q-shield
2-port USB 2.0 module
2 in 1 ASUS Q-Connector kit
1 x Optional Fan for Water-Cooling or Passive-Cooling only
User’s manual

——————————————————————————————————————

Support Disc

Drivers
ASUS PC Probe II
ASUS AI Suite
Anti-virus software (OEM version)
ASUS Update

——————————————————————————————————————

Form Factor

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.5 cm )
